CE-zertifizierter Laserschutzvorhang für Hochleistungslaser der Klassen 4 bis 6 kW
Schutzstufe: 543 W/cm2 – 1070 nm – ∅5 mm – T= 100 Sek.
u unseren Schutzprodukten gehören Laserschutzvorhänge für den Einzel- oder Gruppengebrauch zum Schutz von Arbeitsplätzen, an denen Laser verwendet werden. Unsere Sicherheitsvorhänge können Sehbeeinträchtigungen durch Netzhautschäden und negative Auswirkungen auf die Augen verhindern.
Unsere PhotonSafe-Sicherheitsvorhänge zum Laserschweißen sind so konstruiert, dass sie direktem und gestreutem Laserlicht standhalten, das von tragbaren oder robotergestützten Laserschweißgeräten der Klasse 4 erzeugt wird. Das Material ist flexibel, schwer entflammbar, leicht zu reinigen und in verschiedenen Stärken erhältlich. Vorhänge sind in Standardgrößen oder kundenspezifischen Konfigurationen erhältlich, die von unseren Laserschutzbeauftragten (LSO) entworfen wurden. Das Design unseres Produkts ermöglicht eine einfache Selbstinstallation.
CE-zertifizierte Laserschweißvorhänge - Laser-Sicherheitsbarrieren und -vorhänge - CE-zertifizierter Laservorhang
Schutzstufe: 543 W/cm2 – 1070 nm – ∅5 mm – T= 100 Sek. gemäß DIN 60825
Laserschweißvorhänge spielen eine entscheidende Rolle bei der Schaffung einer sicheren Arbeitsumgebung beim Einsatz von Lasern zum Schweißen oder für andere Anwendungen. Laserschweißvorhänge sind dafür konzipiert, die Laserstrahlung zu blockieren oder abzuschwächen, sodass diese nicht aus dem vorgesehenen Arbeitsbereich austreten kann und das Risiko einer versehentlichen Strahlenexposition des Personals verringert wird. Sie sind ein wichtiger Bestandteil eines umfassenden Lasersicherheitsprogramms, das eine entsprechende Schulung, die Verwendung persönlicher Schutzausrüstung (wie etwa Schutzbrillen für das Laserschweißen) und die Einhaltung etablierter Sicherheitsprotokolle umfasst.
Größe und Konfiguration:
Laserschweißvorhänge sind in verschiedenen Größen und Konfigurationen erhältlich, um unterschiedlichen Arbeitsbereichen und Anwendungen gerecht zu werden. Sie können an Deckenschienen aufgehängt oder auf Rahmen montiert werden, um eine Schutzbarriere um die Laserschweißstation zu bilden.
Müssen ganze Raumbereiche vor Laserstrahlung geschützt werden, kommen Laserschutzvorhänge zum Einsatz. Diese dienen als Schutz vor Streustrahlung sowie direkter Bestrahlung bei Laseranwendungen mit geringer Leistung. Alle von uns verwendeten Materialien sind auf Grundlage der EN 12254 für Laboranwendungen mit geringer Leistung (weniger als 100 Watt Laserleistung) und speziell für Hochleistungslaseranwendungen (EN 60825) bis 6 kW Laserleistung geprüft und zertifiziert.
Unsere Laserschweißvorhänge können auf Rädern in Reihe geschaltet werden, sodass Sie die Vorhänge nach Bedarf bewegen können. Die Paneele sind durch 30 cm und 40 cm lange Trennwände verbunden, sodass Sie bei Bedarf Ecken und Falten erstellen können. Die Paneelsysteme können sehr ähnlich wie ein Duschvorhang funktionieren, haben aber zusätzlich die Eigenschaft, beweglich zu sein.
Vor dem Einsatz von Vorhängen, Paneelen oder Barrieren für das Laserschweißen sollten Sie unbedingt einen Sicherheitsexperten für das Laserschweißen konsultieren und die Richtlinien der Aufsichtsbehörden befolgen, um sicherzustellen, dass die Vorhänge und Barrieren die mit der Laserstrahlung und dem Schweißerlicht in dem betreffenden Bereich verbundenen Risiken wirksam mindern.
Durch die Eigenfertigung sind alle Abmessungen lieferbar.
Which laser welding safety curtain can be used for laser welding protection
What laser protection curtain standard is accepted for handheld Laser Welding?
IEC 60825-4 is the only accepted standard for laser welding protection curtains
⇑ ⇓ ⇑ ⇓
You CAN NOT use curtains with the DIN EN 12254:2012-04 standard!!
This EN 12254 standard applies to supervised screens for installations in working places at which laser radiation up to a maximum mean power of 100 W or single pulse energy of 30 J .
Simply : protection for low power testlabo's (max 100Watt laser Power)
So DIN EN 12254:2012-04 is not a valid norm for Laser Welding
PhotonSafe Pro Curtains models
Certified Laser Safe Curtain Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec

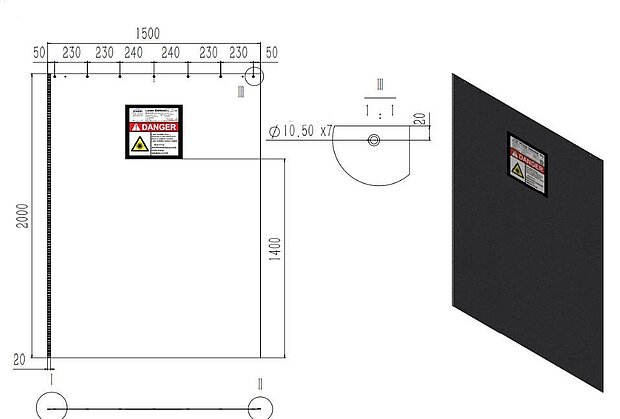

Laser Welding Protection curtain without supporting device
Curtain ready to be used
Laser Protective Curtains according to EN 60825-4 (Laser Welding Protection)
==>NOT according EN11254 (Laser Labo Protection at max 100 Watt)
Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec
PhotonSafe Laser Protection welding curtains have a standard width of 150 cm, are provided with:
- seam all around
- Thickness 0,40 mm.
- All standard welding curtains are supplied incl. steel suspension rings.
- Approved in accordance with ISO EN 25980 and EN 60825-4
- Standard width 150 cm
- Fully seamed all-around
- 7 eyelets on one side measuring 150cm
- Snap-fasteners on both sides
- Including 7 free steel suspension rings
- Standard Heights 208 - 228
- Other heights on demand
- including frame with wheels possible
- Safety window can optional be installed
The welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks. The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.

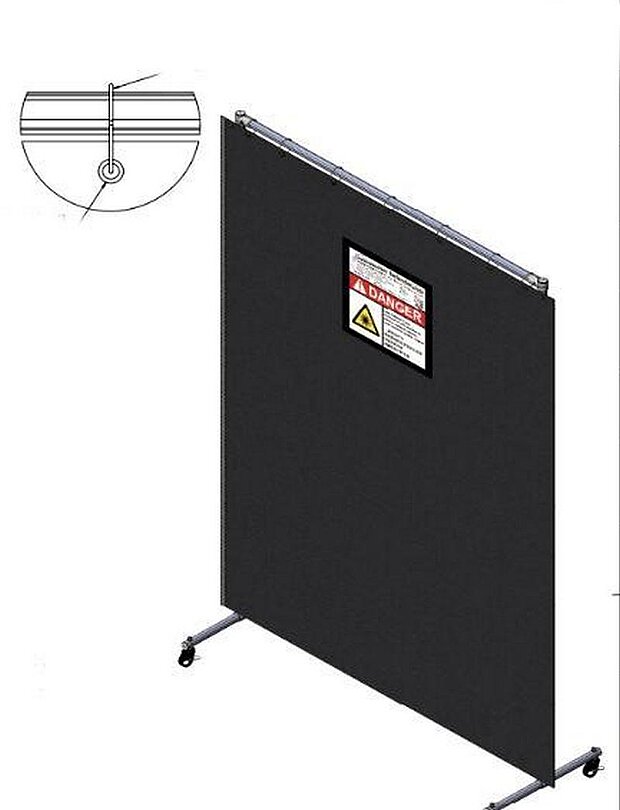

Freestanding Laser Welding curtain 150 cm wide standard
PhotonSafe® freestanding Laser Welding Standard Series
Laser Protective Curtains according to EN 60825-4 (Laser Welding Protection)
==>NOT according EN11254 (Laser Labo Protection at max 100 Watt)
Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec
PhotonSafe Laser Protection welding curtains have a standard width of 150 cm, are provided with:
- seam all around
- Thickness 0,40 mm.
- All standard welding curtains are supplied incl. steel suspension rings.
- Approved in accordance with ISO EN 25980 and EN 60825-4
- Standard width 150 cm
- Fully seamed all-around
- 7 eyelets on one side measuring 150cm
- Snap-fasteners on both sides
- Including 7 free steel suspension rings
- Standard Heights 200 - 250 - 270cm
- Other heights on demand
- including frame with wheels optional possible
- Safety window can optional be installed
The laser welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks. The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.

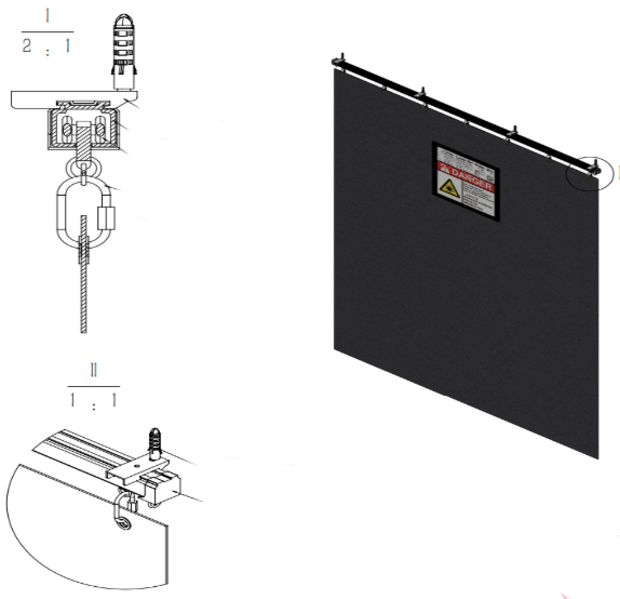

Free Hanging Laser Welding curtain 150 cm wide standard
PhotonSafe® freehanging Laser Welding curtain with wall or ceiling mount included
Laser Protective Curtains according to EN 60825-4 (Laser Welding Protection)
==>NOT according EN11254 (Laser Labo Protection at max 100 Watt
Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec
PhotonSafe Laser Protection welding curtains have a standard width of 150 cm, are provided with:
- seam all around
- Thickness 0,40 mm.
- All standard welding curtains are supplied incl. steel suspension rings.
- Approved in accordance with ISO EN 25980 and EN 60825-4
- Standard width 150 cm
- Fully seamed all-around
- 7 eyelets on one side measuring 150cm
- Snap-fasteners on both sides
- Including 7 free steel suspension rings
- Standard Heights 200 - 250 - 270 cm
- Other heights on demand
- including track kit possible
- Safety window can optional be installed
The welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks. The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.

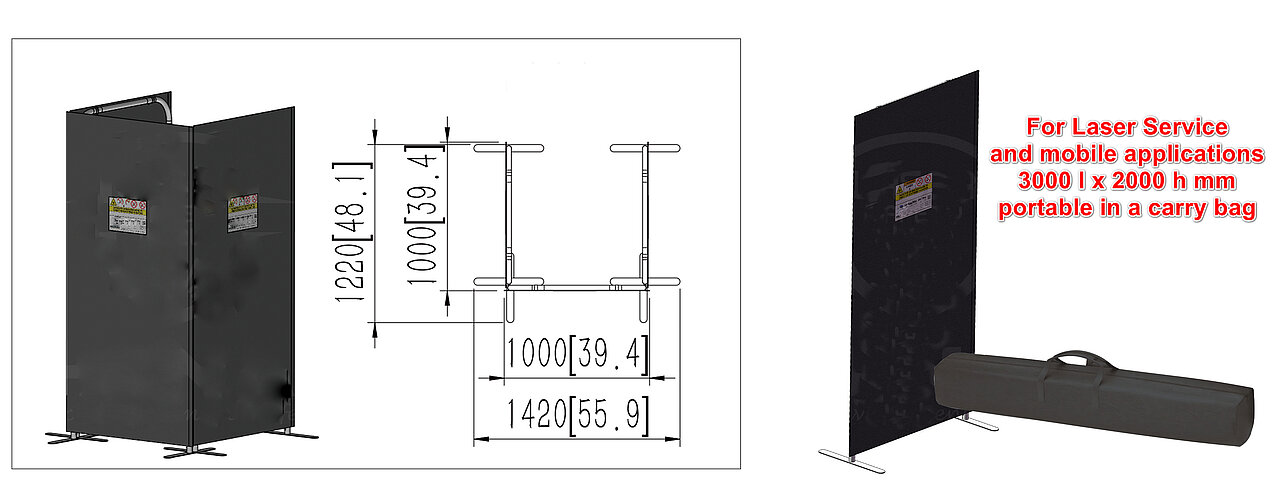

Transportable foldable Laser Safety curtains for mobile or service applications
mobile laser shield for service application and mobile welding jobs

Transportable foldable Laser Safety curtains for mobile or service applications
Special foldable Laser Safety curtains for mobile service applications - portable in a carry bag
Portable Laser Barriers: Photonsafe Service portable compact curtain laser barriers are designed with mobility in mind. All the features you expect in a full size barrier adapted into a barrier that when dismantled fits into a bag and can easily be carried.
Our Laser Protection Pro curtain 3020 tri-fold mobile laser shield consists of three sets of aluminum frames and three pieces of Laser protection Pro Curtain. The Pro Laser Curtain is assembled, paying attention to the installation of castors and hinges between adjacent frames.

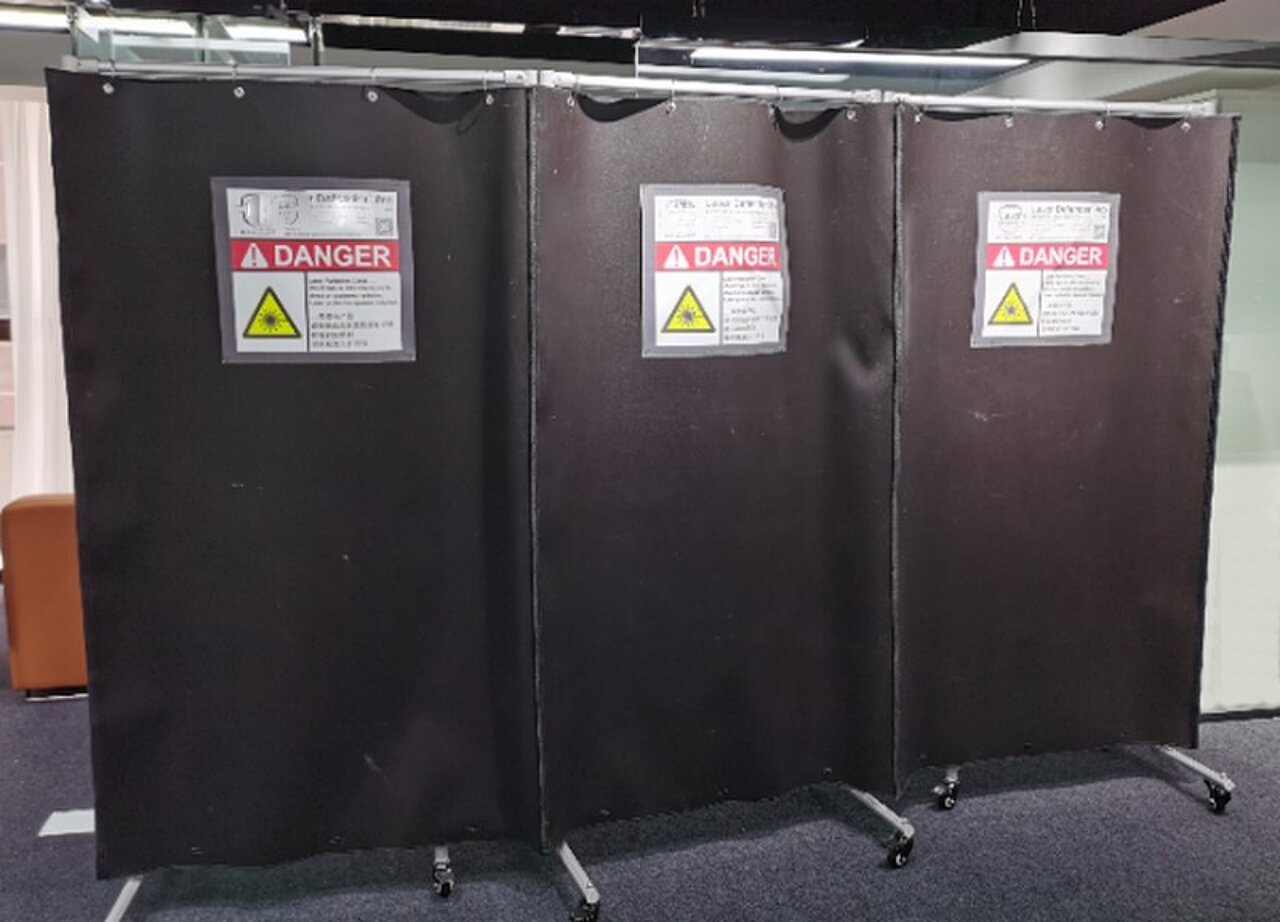

Tri-fold Laser Defending curtains, trifold laser protective screen is composed of three modules, which can be folded and moved, and can be enclosed in L-shape, U-shape, or I-shape. It can be folded and stored, especially suitable for laser experiments, laser machine display, maintenance, and other occasions.. This trifold Laser protection screen can be fitted with a laser protection window for observing the laser from outside the protected area.
3000 mm x 2000 mm
Portable
Special for Service people who want to protect the people around during a service intervention.
Following EN60285 Standard
Portable laser screen, consisting of 3 modules of 1 x 2 m (W x H)
overall size appr. 3 x 2 m
High power resistant curtain black carbon, with aluminium frame and carrying bag
Suitable till 6kW laser

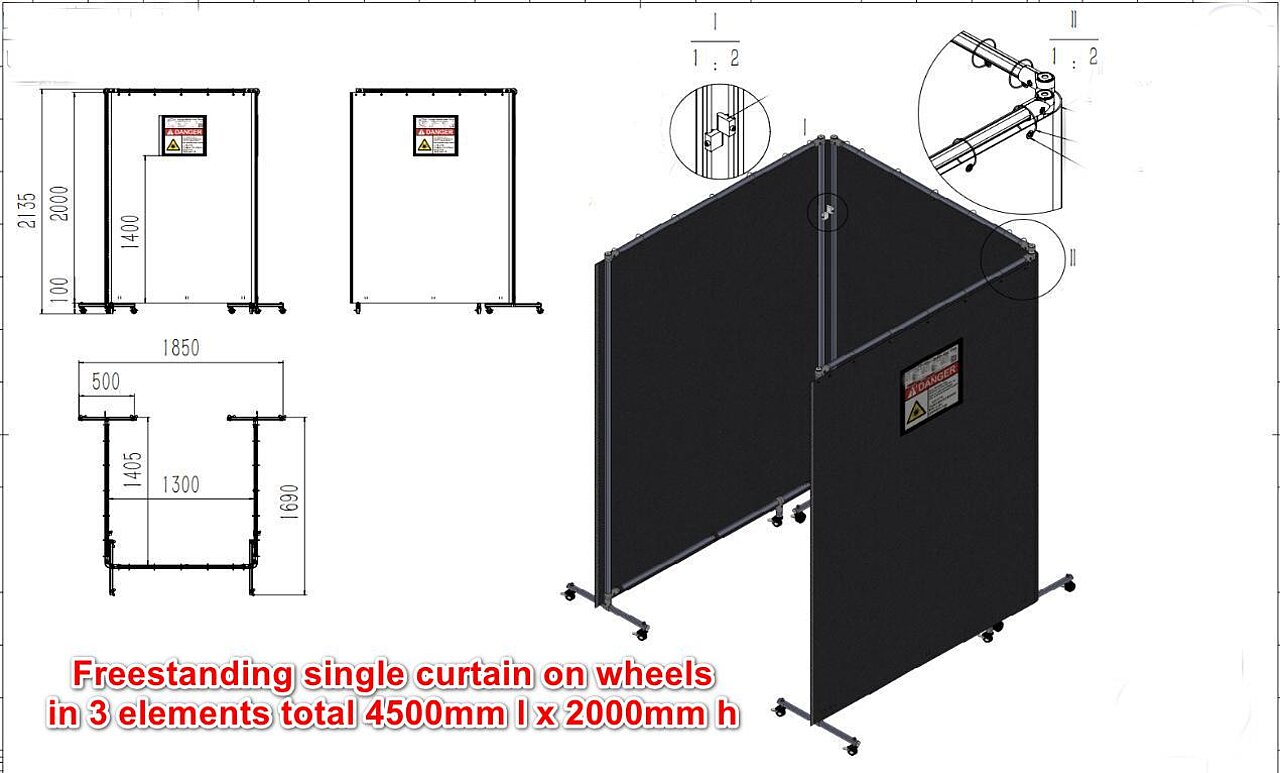

Lasermach foldable mobile welding screen on wheels
Foldable movable laser welding curtain 450 x 200 cm with 3 elements foldable
Tri-fold Laser Defending curtains, trifold laser protective screen is composed of three modules, which can be folded and moved, and can be enclosed in L-shape, U-shape, or I-shape. It can be folded from 3 to 1 panel and stored.
Especially suitable for laser welding on bigger parts, laser welding experiments, laser machine display, maintenance, and other occasions.. This trifold Laser protection screen can be fitted with a laser protection window for observing the laser from outside the protected area.
4500mm x 2000mm
other sizes on demand
