New Third generation Backpack laser cleaning machines

Real portable and light - with optional engraving and marking function

The new Backpack Laser

Up to 1 hour using battery operation – 120 watts – surprisingly affordable

This modern entry level laser cleaner with integated laser engraving and laser marking is now ready to go.

Portable, functional and of high quality, the little one opens up new possibilities.

Our new third generation backpackLASER is quick and easy to operate and fits in any car trunk.

Laser safety goggles on and start lasercleaning.

Soon Available : Trident Series

Laser Cleaning + Laser Engraving + laser Marking in ONE portable battery operated machine

Laser Cleaning

Laser Engraving

Laser Marking

Lasermach Trident PhotonClean Series: 3 in 1

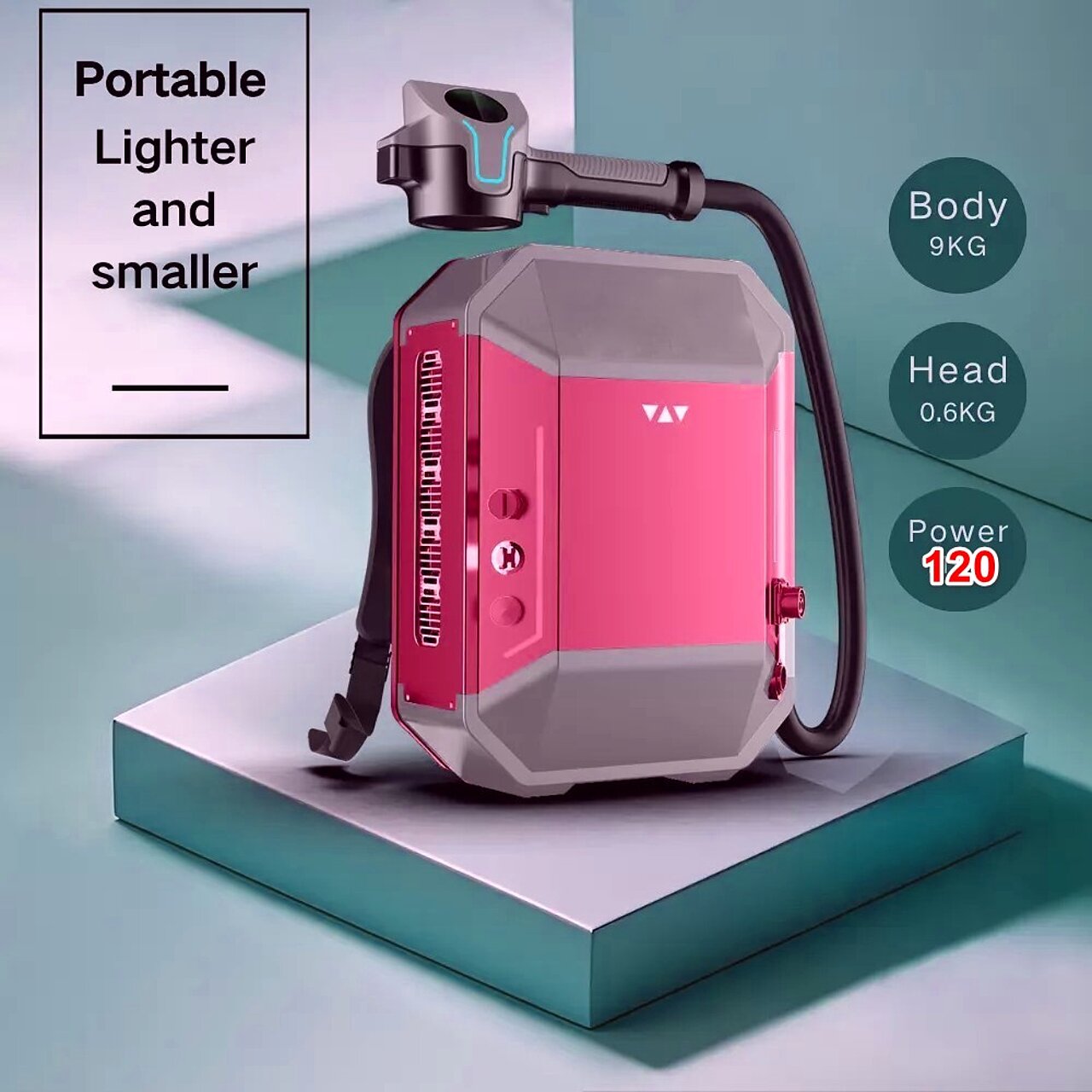

The portable and compact backpack laser for cleaning, marking and engraving

Whether in an burned out cathedral, in an airplane hangar, in your neighbours garage or in other places that are difficult to access, our new backpack laser can go almost anywhere. The central element is a high quality MOPA pulsed laser source with an average laser power of 120 watts and peak power till 8kW

The improved and more comfortable carrying frame together with a super light construction allow longer working hours. Due to its laser power, the laser is suitable for the gentle processing of small or medium size surfaces. The mobile laser system is fully operational even without an on-site power source thanks to battery operation.

Portable Laser Engraver, Laser Marker and Laser Cleaner

Choose ONE machine instead of 3 machines, Buy one machine instead of 3!

Three machines in one, all-round and efficient; modular intelligent manufacturing, plug and play; energy efficiency revolution, cost reduction and efficiency enhancement.

The latest PhotonClean series laser marking, engraving, and cleaning integrated system, powered by cutting-edge fiber laser technology, innovatively combines three core functionalities: laser marking, deep engraving, and surface cleaning, redefining industrial-grade precision processing standards.

Featuring a modular backpack-style design with flexible laser power adjustment (0-100% range), this equipment demonstrates exceptional compatibility with dozens of materials including stainless steel, aluminum alloys, titanium alloys, ceramics, glass, plastics, and wood. Its industrial applications span precision electronic component processing, automotive part marking, high-end artistic engraving, metal surface contaminant removal, and cultural heritage restoration, establishing it as a versatile solution for advanced manufacturing and surface treatment requirements.

New Backpack type Laser cleaning machine

Battery or net operated + optional engraving and marking

First Laser Cleaning machine with marking and engraving function included

1 + 2 = 1 --- Buy one machine and get 2 for free

Today, laser marking is the first choice when manufacturers need to improve their traceability capabilities. Fiber laser technology is recognized as the best option when it comes to permanent markings, high-contrast codes, post-process resistance, and ease of integration.  Therefor Lasermach decide to develop as first in the world our range of Portable Laser surface cleaning machines with ointegrated Laser Marking and Laser Engraving function!

PhotonClean Trident SeriesParameter values



Laser

Laser typeMOPA pulsed fiberlaser
Average power≥120W
Peak power≥8kW
Frequency range1kHz-4MHz
Pulse width5ns-500ns













Output head

Field mirror focallengthStandard F=254mm (can increase F=160mm, F=330mm)
Marking/deep carving/cleaning format≤120mm × 120mm@F=254mm
Clean the spot patternCross, rectangle, spiral, circle, ring,0 ° straight line, 45 ° straight line, 90 ° straight line,135 ° straight line, straight linerotation
Mark/deep sculpt linearity99.9%
Marking/deep carving repeat positioning accuracy8 μRad
Marking/Deep carving Long Time drift(8h)0.5 mRad or less
Output armor lengthAcuity 1.5 m
Communication controlCommunication andcontrol: the outputhead button and visual LCD screen real-time adjustment, or handheld tablet wireless control
Operation assistanceDual red focus,LED lighting
Clean out lightcontrolDouble button interlock
Output head weight600g (without marking bracket)
Marking/deep carving bracket weight≤130g





Electric

Supply voltage100VAC-240VAC
Power supply frequency50Hz/60Hz
Power supply≥500W
Power cord length≥5m
Lithium battery life≥50min
Lithium battery full charge time≤150min

External communication of

equipment

Control modeIO/485
Device languageOutput head screenEnglish
APP terminalEnglish, German, French, Japanese, Korean, Russian, Portuguese, Spanish, Arabic, Thai, Vietnamese 12 languages





Whole machine structure

Status indicatorRed, Blue, Yellow,and Green Multi-Color Breathing Lights
Safety protectionExternal industrial control equipment security interlock interface
Equipment Dimensions264 ×160×372mm
Equipment weight< 10kg
Package size860×515×265mm
Gross packaging weight< 16kg

Portable Laser cleaning machines with integrated Engravers for Quality Marking Process

Portable laser engravers are important in many industries for marking many materials due to their ease of operation and industrial compatibility. There are many types and variations of portable laser engravers.

Portable laser engraving: fast, easy and everywhere

Lasermach's portable laser cleaning machine with engraving module is perfectly suitable for quickly and easily providing large metal objects and permanent installations with laser engraving.  You can quickly move this laser machine and you can permanently place part number, type number, logo, image, barcode or a QR code on an object in no time.

The backpack portable laser cleaning machine with engraving function has a built-in battery that allows you to work in places where there is no main power.

The portable laser engraving machine is one Open fiber laser (laser class 4) where wearing approved laser safety glasses is mandatory. We supply these as standard.

Laser Cleaning: exceptional specifications for the Specialists

First Laser Cleaning Machine with integrated Engraving and Marking functions

Laser Specifications Laser Type MOPA pulsed fiber laser
  Average Power >120Watt
  Wavelength 1064nm +- 10nm
  Single Pulse Energy > 2,1 mJ
  Maximum Peak Power > 8kW
  Beam Mass M² <1,6
  Pulse frequency Range 1 kHz ~ 4.000 kHz
  Pulse Width 5ns ~ 500ns
