Combined Fiber Laser cutting machines : Best of both worlds
Tube and sheet cutting in one machine
Combi Tube plate laser New Model
LFC3015-6000-III
Technical Parameters

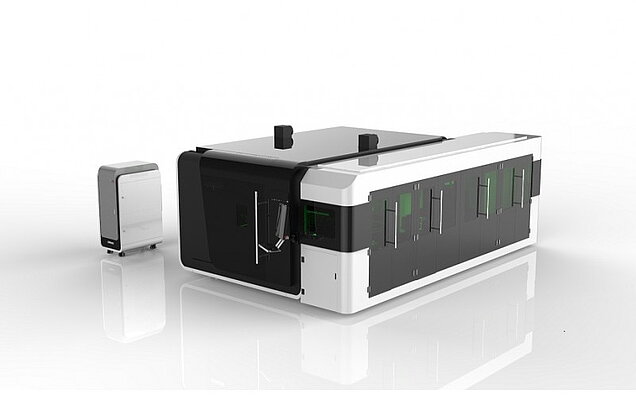

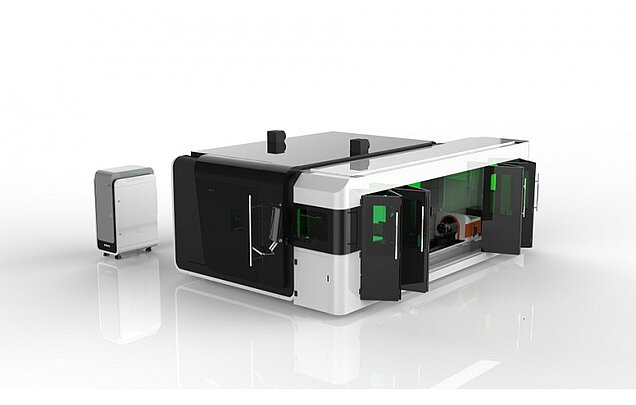

Lasermach Combi fiber laser cutting Machine
| Machine model | LFC3015T6000 | LFC4020T6000 |
|---|---|---|
| Laser power | 1000W 2000W 3000W 4000W 6000W 8000W(Optional) | 1000W 2000W 3000W 4000W 6000W 8000W(Optional) |
| Dimensions | 7800*3580*2150mm | 9400*4280*2150mm |
| Working area | 3000mm x 1500mm | 4000 mm x 2000 mm |
| Repeat positioning accuracy | ±0.02mm | ±0.02mm |
| Maximum speed | 120m/min | 120m/min |
| Maximum acceleration | 1.5G | 1.5G |
| Specified voltage and frequency | 380V 50Hz/60Hz | 380V 50Hz/60Hz |
LFC-Series - New Model
Affordable quality Fiber laser machines
Clamp Design: It adopts an electric clamp design on both sides and it can modulate the center automatically.
The diagonal adjustable range is 20-200mm.
We are updating our site to a newer version
Soon more info on this subject here - Thank you for your patience
Exchanging Platform - APC: It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
