Super compact and easy transportable Laser Cleaning Machines with integrated Engraving and Marking function

220 or 320 Watt Mopa pulsed power

First Laser Cleaning machine with marking and engraving function included

1 + 2 = 1 --- Buy one machine and get 2 for free

Today, laser marking is the first choice when manufacturers need to improve their traceability capabilities. Fiber laser technology is recognized as the best option when it comes to permanent markings, high-contrast codes, post-process resistance, and ease of integration.  Therefor Lasermach decide to develop as first in the world our range of Portable Laser surface cleaning machines with ointegrated Laser Marking and Laser Engraving function!

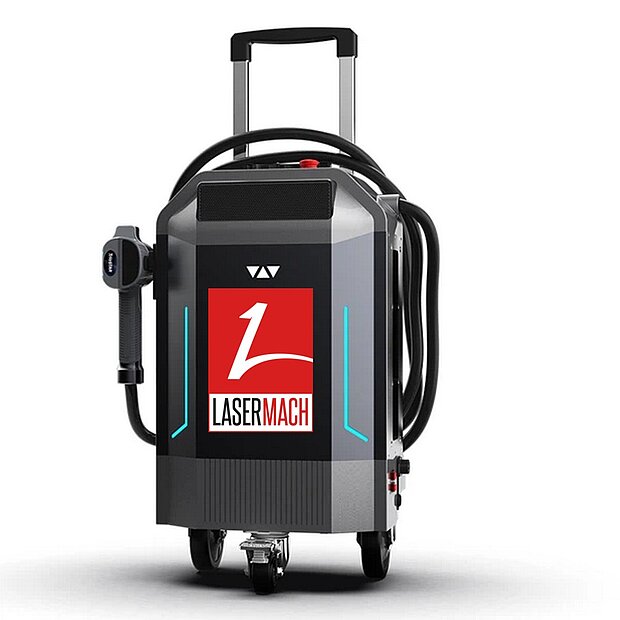

Portable laser cleaning, engraving and marking machine

The Lasermach PhotonClean Swipe2Clean series laser cleaning, engraving and marking machine is based on cutting-edge fiber laser technology, innovatively integrating the three functions of laser marking, deep engraving and cleaning, and comprehensively upgrading the industrial-grade precision processing standards.

The equipment adopts a pull-rod portable and modular architecture, supports flexible adjustment of the laser power range of 0-100%, and is suitable for dozens of materials such as stainless steel, aluminum alloy, titanium alloy, ceramics, glass, plastic, wood, etc. It is widely used in precision electronic component processing, automotive parts identification, high-end craft engraving, metal surface dirt removal and cultural relics restoration.

PhotonClean Portable Trident Pro Series : Laser Cleaning, Laser Marking, Laser Engraving (copy 1)

Standard PRO machine is Precision pulsed cleaning (gaussian) - PRO-M Series is de power cleaning version (Top Hat)

PhotonWeld Portable PRO Series with TRident function
 Parameter values





Laser

Product model numberTrident Pro-220Trident Pro-320
Laser typeMOPA pulsed fiberlaser
Average power≥220 W≥320 W
Peak power≥8 kW≥9.2 kW
Frequency range1kHz-4MHz
Pulse energy≥2mJ≥2.2 mJ
Pulse width5ns-500ns













Output head

Field lensfocal lengthStandardF=254mm (can increase F=160mm, F=330mm)
Marking/deep carving format≤120mm × 120mm@F=254mm
Clean/Wash format≤120mm × 120mm@F=254mm
Clean the spot pattern

Cross, rectangle, spiral, circle, ring, 0 ° straight line,

45 ° straight line, 90 ° straight line,135 ° straight line, straight linerotation

Mark/deepsculpt linearity99.9%
Marking/Deep carving repeat positioning accuracy8 μRad
Marking/Deep carving Long drift (8h)0.5 mRad or less
Output armor length≥5m
Communication control

Communication and control: theoutput head buttonand visual LCD screen real-time adjustment,

or handheld tabletwireless control

OperationassistanceDual red focus,LED lighting
Clean out lightcontrolDouble button interlock
Output head weight600g (without marking bracket)
Marking/deep carving bracket weight≤130g



Electrical

Supply voltage100VAC-240VAC
Power supply frequency50Hz/60Hz
Power supply≥1200W≥1600W
Power cordlength≥5m
Lithium battery life≥50min≥30min
Lithiumbattery full chargetime≤6h
External communication of equipmentControl modeIO/485
Device languageOutput head screenEnglish
APP terminalEnglish, German, French, Dutch, Portuguese, Spanish, Arabic, 12 languages





Whole machinestructure

Status indicatorRed, Blue, Yellow,and Green Multi-Color Breathing Lights
BluetoothHiFi systemSurround, heavy bass
Safety protectionExternal industrial control equipment security interlock interface
EquipmentDimensions384×265×710mm
Equipment weight< 36kg
Package size1000×650×480mm
Gross packaging weight< 50kg
