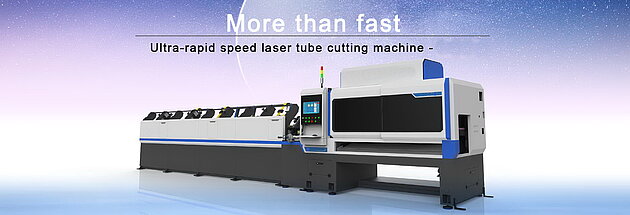

FIBERCUT ULTRA: fiber laser high speed tube, pipe and beam laser cutting machine
High speed thin wall tube trimming and cutting machine
Fiber Laser Tube SAWING Machine
Tube diameter 24mm - Wall thickness 2,4 mm - Tube lenght 328mm - Soft Steel - TAKT Time = 1.78 sec - including last part push out and first part cut-off - 2000 pieces/hour
This tube cutting machine is faster than any high speed sawing machine!
FIBERSAW provide the cheapest, fastest and most flexibel tube and pipe cutting in the world!
REDUCING DRASTICALLY WASTE MATERIAL AND ENERGY CONSUMPTION
Nobody can beat FIBERSAW in saving material or saving energy.
-
With our high efficiency Fiber laser we consume only during some fraction of seconds cutting power, while a shear of a sawing machine has a 4-6 kW Sawing motor continiouly running at full power. Our FIBERSAW consumes minimal 50% less energy than any regular high speed sawing machine!
-
We have the smallest cutting GAP from all sawing machines = 0,1 to 0,2 mm max. While a normal sawing machine has a loss of matrial of 2 to 3 mm for each cut. example: A sawing machine with special thin sawblade of 2,4 mm gets only 185 parts of 30 mm out of a tube of 6000 mm while we get with our FIBERSAW® 198 parts out of 6000 mm tube: Our FIBERSAW® produces 7% more parts than any other sawing machine!
-
The rest part (last crop) can be easily less than 40 mm, where many other Sawing machine makers AND tube laser cutting machines makers have aloss of 180 to 300 mm, FIBERSAW® guarantees the shortes losses at the end of the tube between all sawing machines!
-
The first crop is is less than 10 mm : saving extra material
FIBERSAW® cuts faster, more economical in material and energy and much cheaper than ANY other tube cutting machine.
Smallest cutting GAP
max 0,2 mm
Shortest TAKT time
= 0,8 sec
Shortest Rest Part
=< 40mm
All Fibersaw Machines have optional an interior clean wall function
No melted metal residu on the tube internal walls!
Fibersaw: super fast tube cutting machine : burr-free cutting of stainless steel tube
stainless steel tube diam 36 mm wall thickness 1, 6 mm cutting lenght 645 mm : with auto loading TAKT time : 3,48 sec super fast tube cutting
LOWEST Maintenance and cutting cost in the market!!
NO SAWBLADES !
NO SAWBLADES TO REGRIND!
NO STOPPING TO CHANGE SAWBLADE
NEVER TO CHANGE SAWBLADES FOR OTHER MATERIAL OR OTHER DIMENSIONS
ONLY ONE SETUP FOR ALL MATERILAS AND ALL DIAMETERS
Lifetime of laser SOURCE > 100.000 HOURS
> More than 20 years in cutting without problems!
FIBERSAW®-F60-ULTRA Series
Fiber laser cutting system for round, square, rectangular, oval, .. tubes and pipes processing up to 60 mm in diameter.
Fibersaw®-Series are the compact machines in the Lasertube family designed for continuous production of smaller diameter and thinner wall tubes.
Simple to use and manage, extremely robust, designed for high production and frequent product changes.
Equipped with a 0.5 to 2 kW fiber source, FIBERSAW® F60-ULTRA is the right machine for complex cutting of thin wall and small dimension pipes and tubes of any form.
SHORTEST TAKT TIME : 0,8 Sec/piece
More info on Fibersaw F60

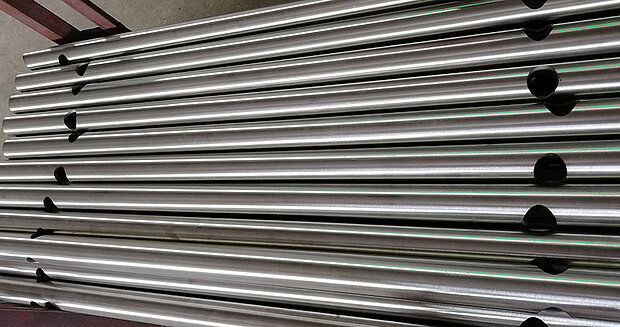

FIBERSAW®-F120-Plus Series: Highest speed tube and pipe cutting
KEY FEATURES
- Quick and easy set-up for different tube sizes
- bunker and buffer magazine loader
- Standard components for easy service and maintenance
PERFORMANCE-ENHANCING OPTIONS
- 1-2-3 kW resonator possible
- Options available for out-feed automation
- Nesting for best utilization of materials
- Seam detection system
- Bundle feed
More info on Fibersaw F120Plus
Let us show you a unique way to cut pipe and tube method that is faster and cleaner than what you’re using now.
There are many ways to cut pipe and tube: band saws, cold saws, chop saws, shear,.. to name a few. But none can match our FIBERSAW
Superior performance in thin wall materials
The faster cutting speed of nitrogen assist fiber laser cutting on thin materials more than doubles machine productivity compared to any other cutting: thinner wall mild steel, stainless steel and galvanized are the materials that benefit the most from fiber laser cutting.
Zero laser maintenance required
The fiber laser does not require routine adjustments, component replacement or rebuilds. It does not consume laser gas. No need of saw blades or cutting discs. Laser beam quality is stable and consistent over time. It is ready to cut as soon as you turn it on. No warm up is required.
New materials for new opportunities
Copper and brass can be easily cut with fiber laser. Even tricky grades of aluminium and galvanized steel pipes are easily processed.
Far more efficient with much lower power consumption
The increased electrical efficiency of fiber laser technology drastically slashes the electrical consumption of the system, yielding savings on the utility bills and on the initial installation due to reduced requirements.
Minimum size, maximum production rate
FIBERSAW is small.
Occupying less floor space means having a smaller impact on the organisation of your production.
The ability to optimise the entire production flow and eliminate unneeded handling of bars and the parts frees up floor space and saves labor.
High speed processing and quality
Moving light, flexible tubes fast, without ever losing control and without the risk of jamming the loader: this is the result of our tube processing experience.
Our laser machines bring you a cost-effective, low-maintenance, environmental-friendly solution to your organization.
We deliver Fiber Laser Cutting machines that provides quality cutting and tight tolerances, low productivity loss between jobs and less maintenance costs.
Cutting solutions with high productivity
Tube Cutting Machine: CNC fiber laser SAW for tubes and pipes
The only high speed Fiber Laser SAWING machine on the market.
AFFORDABLE
Reduce your costs: Cut with light, NO SAWBLADES!
FAST R.O.I.
FIBERSAW F-Series with Computer Vision system
